OUR SITE PLANS ARE NOT A SURVEY, NOR ARE THEY INTENDED TO REPLACE ONE.

Customer Portal

PRECISION DRAFTING

FOR EVERY PROJECT

Discover quality drafting for architects
and designers.

get your plan

Sitedraftstudio

Precision in Every Line

At SiteDraftstudio, our mission is to provide high-quality drafting services that complement your creativity and workflow, when you need it.

We believe that every designer deserves the best tools to bring their ideas to life, and we are here to fill the gaps that will enable you to streamline your process.

GET TO KNOW US

High accuracy - Fast Turnaround

Non-certified, US-based digital plans for feasibility, permitting, and project scoping.

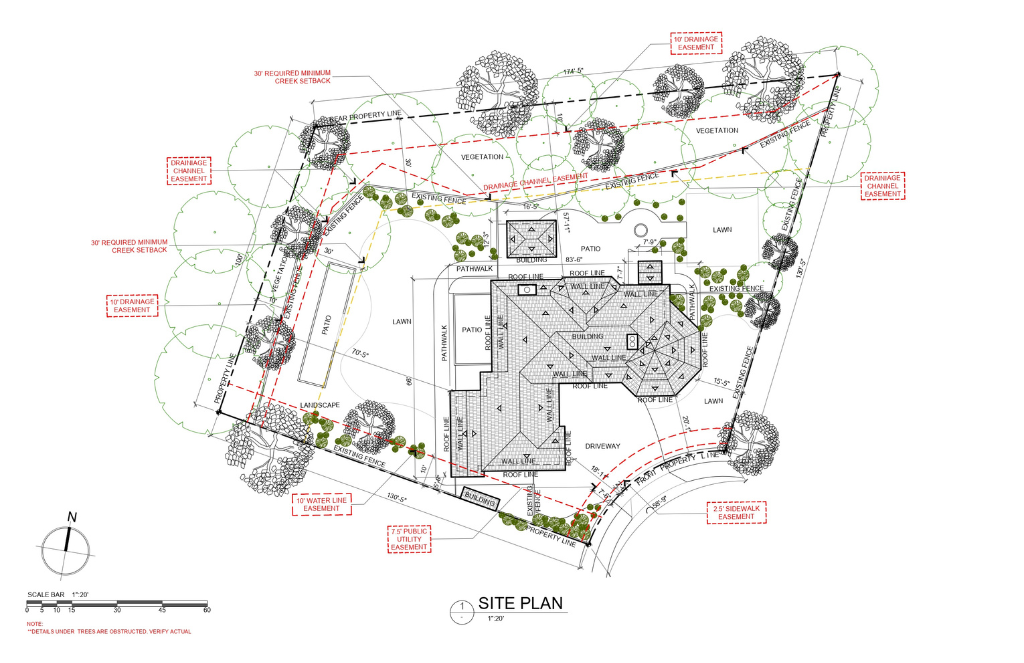

Site Plan

Initial/basic layout or sketch

starts at $100

  • Property boundaries and lot lines
  • Existing and proposed structures
  • Topographic contours and elevations
  • Landscaping layouts and open spaces
  • Setbacks, zoning data, and easement research
GET THIS PLAN

3D Rendering

Full set ready for permitting/building

  • Realistic 3D visualizations of buildings, sites and interiors
  • Photorealistic textures, lighting, and materials
  • Integration of landscaping furniture, and exterior details
  • High-resolution outputs for presentations, investors, and marketing
  • Walkthroughs or flythroughs available upon request
get quote

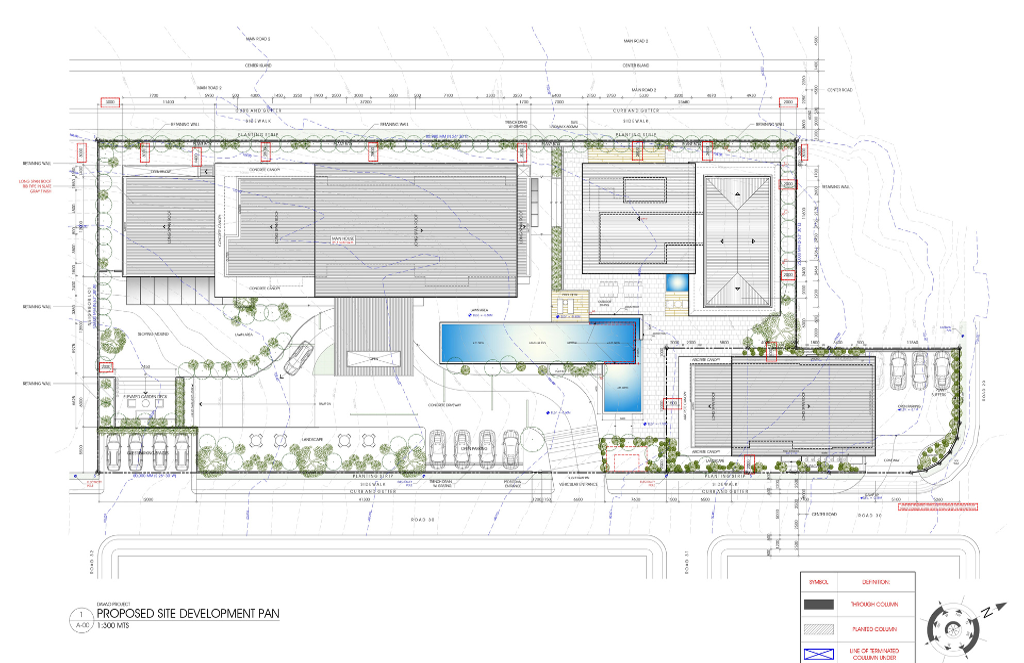

2D Drawings

More detailed drafting with layout and dimensions

  • Scaled floor plans with accurate measurements
  • Elevations and sections for materials and heights
  • Technical drawings for layouts and utilities
  • CAD-compatible files for collaboration
  • Clear drafts for permits, bids, and construction
get quote

Customizable Solutions

We tailor our site plans to the specific needs of residential and commercial projects.

High Accuracy

Our site plans ensure high accuracy with a maximum variance of up to one foot.

Next Business Day Turnaround

Receive site plans the next business day.

What Our Clients Are Saying

Real stories from real clients who got their site plans fast – and got approved even faster.

Mellissa R.
"Got it, Thanks! I'm impressed with how this turned out, and I have already given your information as a resource for a fellow architect."
Lisa B.
"This is perfect. Thank you so much for all you help on this. I will look forward to continuing to use your company in the future, this maps are so helpful for business."
Brayan H.
"I'd like to post a great review on the excellent quality and super fast delivery of the plan."

Talk to us

We’re here to help. Have a question or need more information? Send us a message or call us directly at 1 (650) 443-8241

Request a Qoute

Fill in your details and we’ll respond with a custom quote that fits your needs.
